368 kW
26 cubic meter
2476 Nm
41 to
Technical details
Product Overview

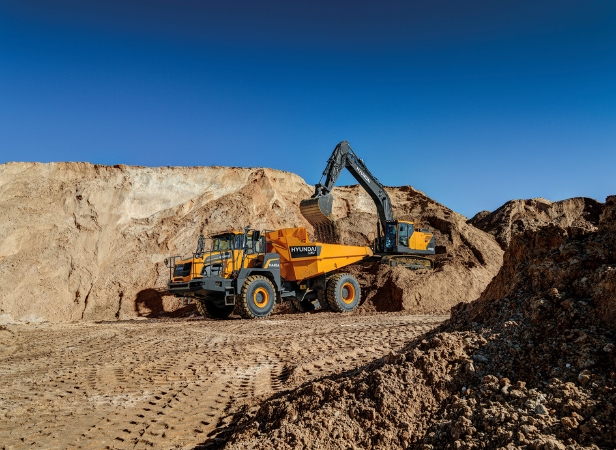

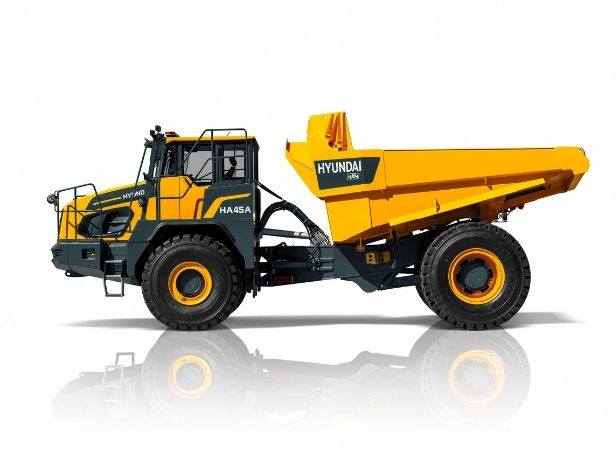

The Hyundai HA45A 4x4 articulated dump truck expands the A-Series ADT range with a machine engineered for maximum performance in demanding environments. Powered by a high-performance Stage V Scania engine and supported by a self-levelling hydro-gas suspension system, it delivers smooth travel, strong traction and precise control. Its compact design, reduced ground impact and easy service access make it an ideal solution for construction, quarrying and earthmoving applications.
Reasons to choose the HA45A 4x4

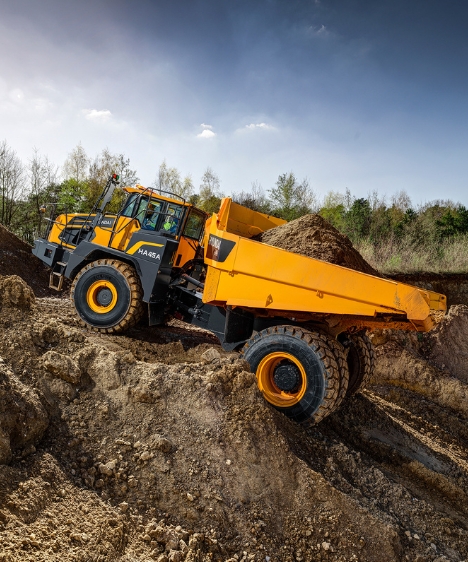

Go-anywhere traction and control
The Hyundai HA45A 4x4 articulated dump truck is purpose-built to maintain grip, balance and control in the most challenging underfoot conditions. From steep inclines to slippery haul roads, every element of the machine is designed to deliver consistent performance, giving operators the confidence to work safely and efficiently across demanding sites.
- Stage V Scania engine delivering 368 kW (500 hp) at 2100 rpm, providing strong and consistent power across all operating conditions
- High torque output ensures reliable hauling performance, even when working on steep gradients or in heavy, difficult ground
- Limited slip differentials maximise traction in low-grip environments, maintaining drive without fully locking the wheels
- Downhill speed modulation system uses a hydraulic retarder to maintain a steady speed on descents, reducing reliance on service brakes and improving safety

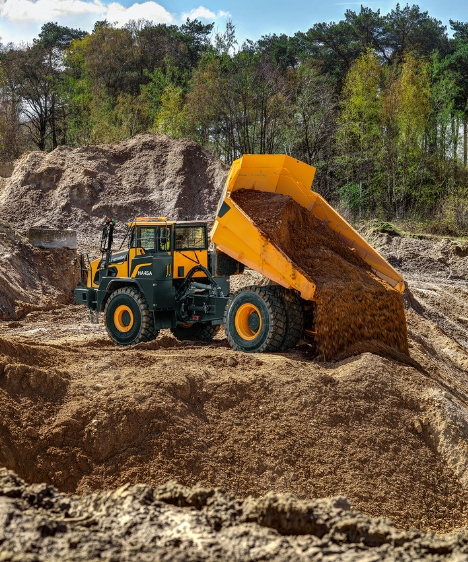

Lower cost of ownership
The Hyundai HA45A 4x4 articulated dump truck is designed with serviceability in mind, helping to reduce maintenance time, lower operating costs and maximise machine availability. With simple access and a streamlined layout, routine servicing can be carried out quickly and efficiently.
- Ground-level access to all major service and filling points improves safety and reduces daily maintenance time
- Clearly positioned liquid level checks make routine inspections quicker and easier for operators and technicians
- Centralised filter layout allows faster servicing, helping reduce downtime during scheduled maintenance
- Simplified machine design reduces component complexity, lowering the risk of failure and improving long-term reliability
- Reduced number of wear components helps minimise service costs and lowers overall labour requirements
Comfort and control, all day long
Designed with direct input from operators, the cab of the Hyundai HA45A 4x4 articulated dump truck delivers a comfortable, intuitive and highly functional working environment. With excellent visibility, low noise levels and easy-to-use controls, it helps reduce fatigue and supports consistent productivity throughout long working shifts.
- Spacious ROPS/FOPS cab offers class-leading interior space, giving operators more room to work comfortably throughout the day
- Air-suspension seat with integrated armrest reduces vibration and supports operator comfort on rough terrain
- Self-levelling hydro-gas suspension system improves ride quality, helping maintain stability and control in challenging conditions
- 7-inch LCD colour monitor provides clear, easy-to-read machine information, including diagnostics and operational data
- Efficient climate control system and low in-cab noise levels create a more comfortable working environment, even in extreme conditions

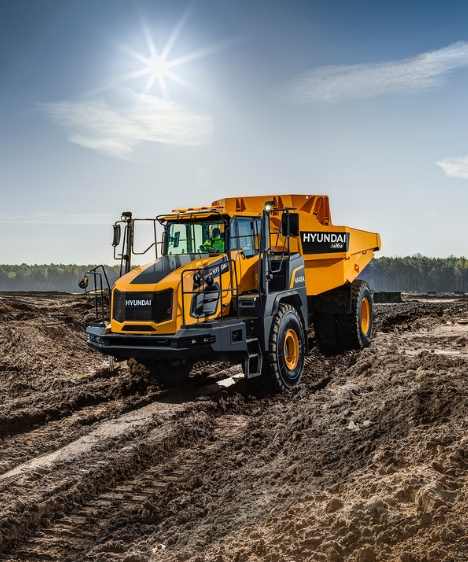

Designed to move more, every cycle
The Hyundai HA45A 4x4 articulated dump truck is engineered to maximise productivity across every haul cycle. From its compact dimensions to its intelligent load monitoring systems, every detail is designed to help operators move more material, more efficiently, while reducing unnecessary ground impact and improving overall site performance.
- Compact chassis design improves manoeuvrability in confined or restricted job sites, allowing faster cycle times and easier positioning
- Two-axle configuration reduces ground pressure and minimises terrain damage, making it ideal for soft or sensitive surfaces
- Sloping rear frame lowers the centre of gravity, improving stability while enabling faster, smoother body tipping
- Integrated payload meter provides real-time load data, helping operators optimise every load and avoid under or overloading
- External load indicator lights allow operators and loading equipment to work more efficiently, reducing loading time and improving accuracy
FAQs about the HA45A 4x4 ADT
Does the HA45A 4x4 comply with the European stage V emission levels?
Yes. The HA45A 4x4 complies with Stage V of emission regulation
(EU) 2016/1628.
Does the HA45A 4x4 have air conditioning?
Yes, both the HA45A 4x4 comes with air conditioning.
What is the capacity of the HA45A 4x4?
The heaped capacity with the tailgate is 26 m³ and 24.4 m³ without the tailgate.
What is the tipping angle of the HA45A?
70°
