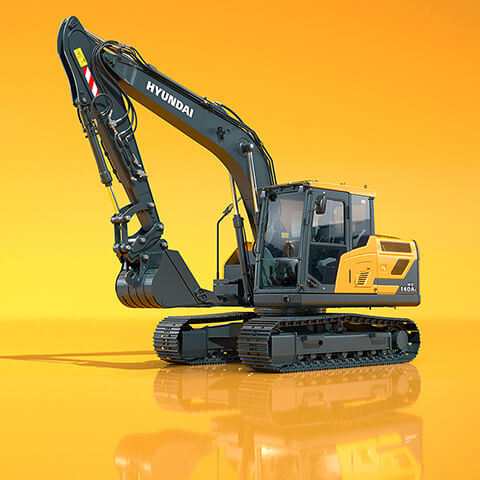

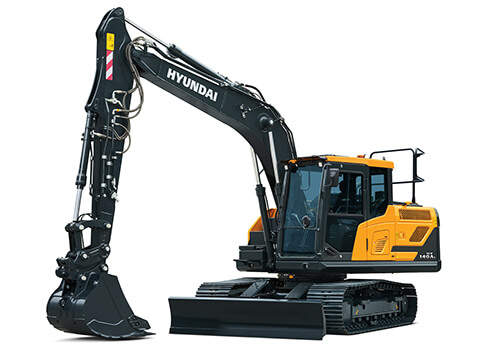

HX140A L Crawler Excavator

HX140A L

Our new A-Series HX140A L 14 tonne crawler excavator is ready to help build your world. Featuring a new tough exterior design with added safety features and greater serviceability, you can rely on the HX140A L to perform in the toughest conditions on large construction sites and infrastructure projects.

14405 kg

100 kW

0.50 - 0.77 cubic meter

Cummins F3.8 Stage V

Technical details

Product Overview

The HX140A L’s high-performance engine delivers better productivity and fuel efficiency while meeting EU Stage V emissions regulations. Thanks to its new Cummins F3.8 Stage V engine, the HX140A L delivers more power and torque using less fuel to provide up to 11% fuel savings. The Stage V engine is a new generation of ultra-low emissions engines that is EGR-free (Exhaust Gas Recirculation). This technology helps to reduce harmful nitrogen oxides (NOx) emissions and is satisfying the strictest environmental emission regulation in the world.

Reasons to choose the HX140A L

Built for tough jobs

With a new exterior design and improved attachment performance, the HX140A L has been redesigned to be tough from the ground up.

  • The robust upper and lower frame structure have been tested to endure external shock and heavy workloads.
  • High-grade hoses with improved heat and pressure resistance, greatly increase durability.
  • Side protector protects the frame sides during operation in narrow areas.
  • Durable cooling module Power Boost function has passed stringent tests, demonstrating the highest productivity in tough working environments.
  • Tough cabin structure with integrally welded, low-stress, high strength steel to meet ROPS and FOG certification.

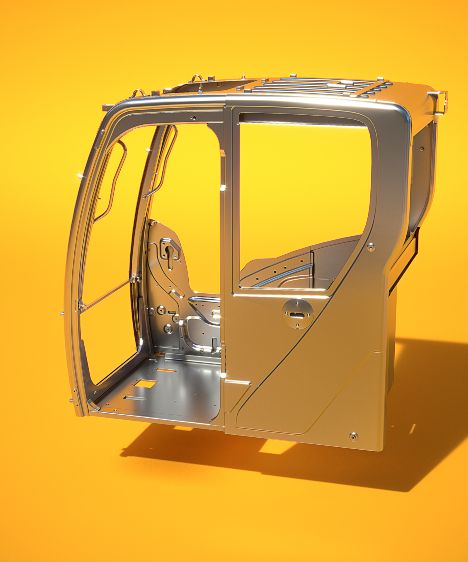

The steel cabin frame of the HX140AL crawler excavator

Better productivity and efficiency

From its upgraded, eco-friendly engine to its advanced control technologies, the HX140A L reaches new heights of productivity and fuel efficiency.

  • Stage V engine features an EGR-free design with 3% more power and 12% more peak torque.
  • IPC (Intelligent Power Control) optimises pump flow rate and power at various working conditions, through the individual pump control.
  • Lifting mode improves fine control and lift capability through RPM reduction, power boost activation and pump flow control.
  • Automatic Engine Shutdown significantly reduces idle time. overall operating hours and fuel consumption.
  • The Eco Gauge helps reduce emissions and running costs by constantly monitoring efficiency.

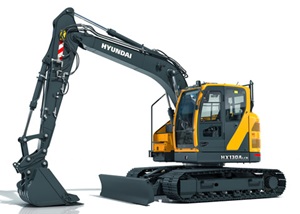

HX130A LCR cabin

Greater control and comfort

With 13% increase in cabin space and conveniently placed electronic functions, the HX140A L is designed to improve work efficiency.

  • Intelligent, market-leading 8” touchscreen has a display similar to a smartphone, providing excellent legibility.
  • One pedal to travel straight helps for long distance travelling or when a combination of attachment work with travelling is necessary.
  • Proportional auxiliary hydraulic system control switch provides better speed control for added convenience during intensive work.
  • Jog Dial Module is used to operate accelerator, remote air conditioner controller and instrument cluster.
  • Designed for efficient operation, pilot pressure operated joysticks and pedals with detachable lever provide effortless and fatigue-free operation.

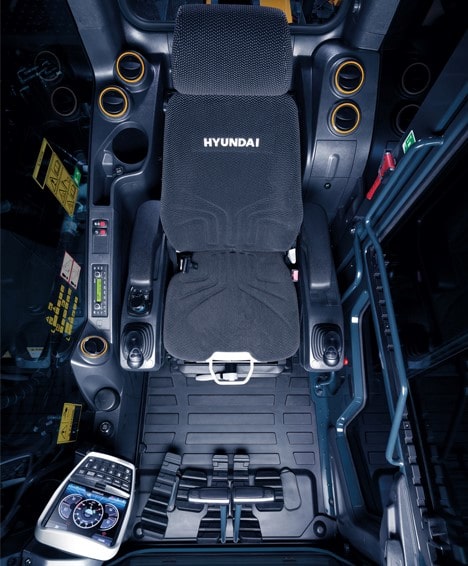

Interior view of crawler excavator cabin

Easy servicing and maintenance

All our A-Series excavators are designed with quick, easy servicing in mind, while our innovative telematics system helps reduce costs and increase productivity.

  • Improved ground level access to filters, lube fittings and master switches make servicing more convenient.
  • Longer lasting filters, as the engine service interval has doubled from 500 hours to 1000 hours.
  • Hi MATE telematics system provides real-time information to help monitor your machine’s health, activity, maintenance and security.
  • Mobile Fleet App provides all the information you need to run your fleet efficiently and economically.

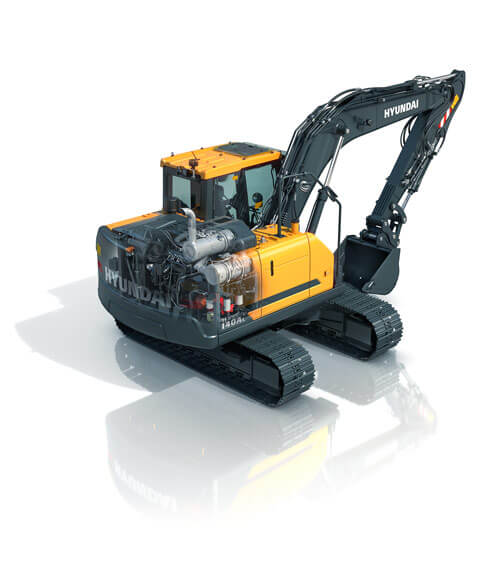

HX140AL with the engine visible

FAQs about the HX140A L crawler excavator

Does the HX140A L comply with the European stage V emission levels?

Yes. Its high performance engine delivers better productivity and fuel efficiency while meeting EU Stage V emissions regulations.

Does the HX140A L integrate with Hi Mate?

Yes. Hyundai’s innovative Hi MATE telematics system enables full monitoring of machine activity and performance.

What is the service interval on the HX140A L?

Service intervals have increased by 100% from 500hrs to 1000hrs when using CK-4 engine oil on the following items, engine oil, pre-filter, engine oil filter and fuel filter.

What is the tailswing radius of the HX140A L?


What is the bucket capacity of the HX140A L?

0.50 m³ - 0.77 m³
