HD Hyundai HX210A L crawler excavator unloading material on site

HX210A L 21 Tonne Crawler Excavator

HX210A L

The A-Series HX210A L is a 22 tonne crawler excavator that’s been built to handle the most demanding excavation jobs. Its robust Stage V engine delivers all the power you need- 129 kW (173HP), for tough working environments.

22150 kg

Cummins B4.5 Stage V

129 kW

0.80 - 1.34 cubic meter

Technical details

Product Overview

The Hyundai HX210A L A-Series Crawler Excavator is powered by a robust Stage V-certified Cummins engine with an innovative integrated after-treatment system, that reduces both emissions and maintenance requirements, while delivering excellent fuel economy. It also has ground-breaking levels of customer satisfaction, with maximum performance and productivity, better safety, more convenience and improved uptime management. With a robust exterior design and smart performance-enhancing technologies, this hard-working machine opens up a world of new possibilities where little effort can move mountains.

Reasons to choose the HX210A L

Designed to boost productivity

The HX210A L features the perfect balance of power and technology to optimise controllability and reduce operating costs, helping you to further improve productivity every single day.

  • The Cummins B4.5 engine delivers more Designed to boost productivity.
  • The HX210A L features the perfect balance of power and technology to optimise controllability and reduce operating costs, helping you to further improve productivity every single day.
  • The Cummins B4.5 engine delivers more power and performance with 780 Nm of peak torque.
  • EGR free aftertreatment system enhances reliability and simplifies maintenance.
  • Automatic engine shutdown feature cuts fuel consumption and emissions.
  • Eco Gauge helps operators to reduce emissions and running costs by displaying the engine workload and fuel-saving status.
  • Lifting mode improves precision and lift capability through RPM reduction, power boost activation and enhanced pump flow control.
  • EPFC (Electronic Pump Flow Control) ensures the optimal balance of power and precision.
HD Hyundai HX210A L crawler excavator on a hill unloading material

Built to last

We’ve prioritised reliability from design and manufacturing to quality control, to minimise downtime and repairs and to help avoid unexpected costs and protect profits.

  • The undercarriage has nine bottom rollers to improve stability, reduce track wear and decrease the risk of de-tracking.
  • A cooling module has been stringently tested to protect productivity in tough working environments.
  • The cabin structure is reinforced with high-strength steel and is certified to ROPS and FOPS safety standards.
  • The machine can be optionally equipped with side bumpers to absorb any impact on the exterior frame and protect the machine.

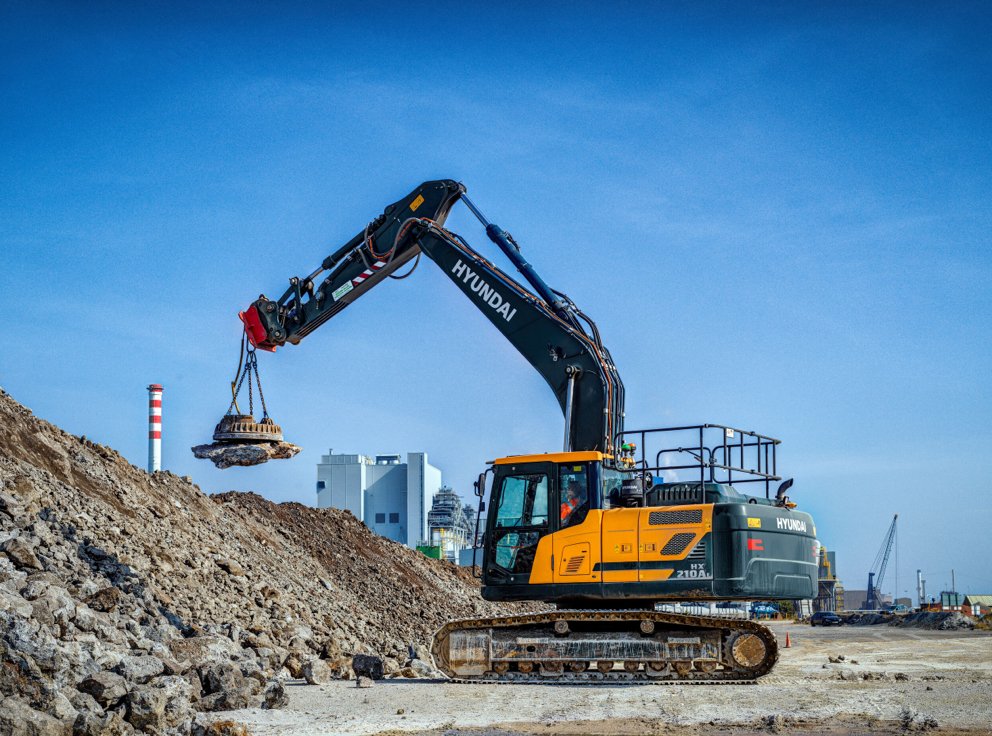

HD Hyundai HX210A L crawler excavator working on a rock pile

Greater operator comfort

The cab is designed to boost productivity and reduce fatigue with a layout that places the most important controls within easy reach and a range of options to tailor it to your needs.

  • Key On Init Work Mode allows operators to save the attachment mode setting so that the machine is automatically in the right work mode when re-starting.
  • Menu functions can be set by the machine owner and password locked to restrict access.
  • Combination speed setting system allows operators to balance load sensitivity and boom priority against arm and swing.
  • Wide touchscreen monitor features an 8-inch display to enable easy, efficient control.
  • Improved visibility to the rear and bottom right-hand side, plus safer cab access.
  • For added convenience, the accelerator, remote air conditioner controller and instrument cluster can be operated using the integrated jog dial module.
Interior view of crawler excavator cabin

Enhanced safety

New technologies have been added to protect machine operators and make the construction site a safer place.

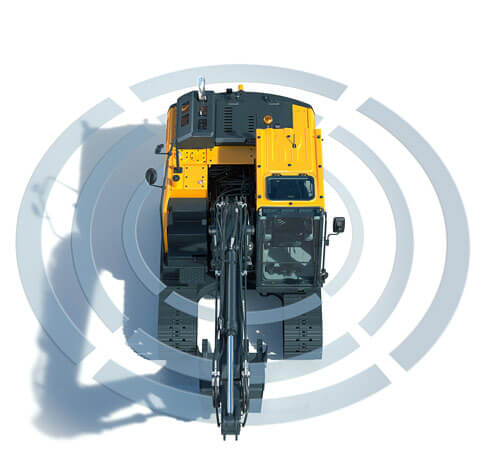

  • Advanced Around View Monitoring (AAVM) camera system gives you a 360° overview of your immediate working environment.
  • Intelligent Moving Object Detection (IMOD) technology senses and warns you when people or objects come within five metres of the machine.
  • Electronic swing parking system controls the swing brake to improve safety and efficiency.
  • Audible and visible Seat belt warning alarm reminds operators to fasten their seat belt.
  • An auto safety lock feature prevents unintentional ignition. When the lock is activated, the excavator is not controlled by the RCV lever.
Ariel view of the HX210A L HD Hyundai crawler excavator

FAQs about the HX210A L crawler excavator

Does the HX210A L comply with the European stage V emission levels?

Yes. Its high performance engine delivers better productivity and fuel efficiency while meeting EU Stage V emissions regulations.


Does the HX210A L integrate with Hi Mate?

Yes. Hyundai’s innovative Hi MATE telematics system enables full monitoring of machine activity and performance.

What is the service interval on the HX210A L?

The fuel filter service interval has been increased from 500 hours to 1,000 hours. DPF cleaning is only required if alerted by a fault indication, eliminating the need for regular ash cleaning intervals.

What is the tailswing radius of the HX210A L?


What is the bucket capacity of the HX210A L?

0.80 m³ - 1.34 m³
