HX330A L moving material on a large construction site

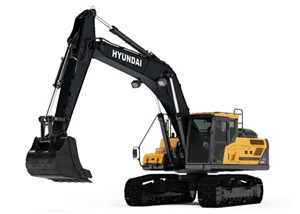

HX330A L Crawler Excavator

HX330A L

The Hyundai HX330A L is part of the A-Series range of crawler excavators. This 30 tonne model has been designed to deliver top performance in many industries. With 242 kW (325 HP), the HX330A L is optimised for heavy digging, lifting and grading applications and built to last, with minimum downtime.

33750 kg

Cummins B6.7 Stage V

242 kW

1.44 - 2.10 cubic meter

Technical details

Product Overview

The HX330A L is powered by a robust Stage V-certified Cummins engine with an innovative integrated after-treatment system that reduces both emissions and maintenance requirements. It delivers all the power you need to handle demanding jobs and has a range of smart technologies for precise management of the engine output and pump flow rate. The upgraded IPC (Intelligent Power Control) system improves efficiency through automated control of the individual hydraulic pumps. Additional features optimise operation and monitoring to enhance productivity every single day.

Reasons to choose the HX330A L

Designed to boost productivity

The HX330A L features the perfect balance of power and technology to optimise controllability and reduce operating costs, helping you to further improve productivity every single day.

  • The Cummins L9 engine delivers an impressive 1,526 Nm of peak torque.
  • EGR free aftertreatment system cuts emissions and costs while simplifying maintenance.
  • EPIC (Electric Pump Independent Control) improves fuel efficiency while helping to reduce losses in hydraulic flow and maximise production capacity.
  • Automatic engine shutdown feature cuts fuel consumption and emissions.
  • Eco Gauge helps operators to reduce emissions and running costs by displaying the engine workload and fuel-saving status.
  • Lifting mode improves precision and lift capability through RPM reduction, power boost activation and enhanced pump flow control.
HX330A L crawler excavator working on a demolition site

Built to last

We’ve prioritised reliability from design and manufacturing to quality control, to minimise downtime and repairs and to help avoid unexpected costs and protect profits.

  • The cabin structure is reinforced with high-strength steel and is certified to ROPS and FOPS safety standards.
  • The undercarriage has nine bottom rollers to improve stability, reduce track wear and decrease the risk of de-tracking.
  • A cooling module has been stringently tested to protect productivity in tough working environments.
  • The machine can be optionally equipped with side bumpers to absorb any impact on the exterior frame and protect the machine.
The steel cabin frame of the HX330A L crawler excavator

Greater operator comfort

The cab is designed to boost productivity and reduce fatigue with a layout that places the most important controls within easy reach and a range of options to tailor it to your needs.

  • Wide touchscreen monitor features an 8-inch display to enable easy, efficient control.
  • Air suspension seat with heating as standard and an ergonomic joystick for intuitive operation.
  • The accelerator, remote air conditioner controller and instrument cluster can be operated using the convenient jog shuttle-type haptic controller.
  • Key On Init Work Mode allows operators to save the attachment mode setting so that the machine is automatically in the right work mode when re-starting.
  • Menu functions can be set by the machine owner and password locked to restrict access.
Interior view of crawler excavator cabin

Minimum servicing. Maximum connectivity.

The HX330A L is designed to make maintenance as convenient as possible with quality components and maximum connectivity for a smarter, profitable construction site.

  • Our Diagnostic Tools app lets technicians connect wirelessly to the machine on-site using a smartphone or laptop.
  • Hyundai’s innovative Hi MATE telematics system enables full monitoring of machine activity and performance.
  • Our Mobile Fleet app provides all the information you need to run your fleet efficiently and economically.
  • The fuel filter service interval has been increased from 500 hours to 1,000 hours.
  • Passive DPF system provides permanent regeneration of the diesel particulate filter during operation, eliminating the need for active DPF regeneration.

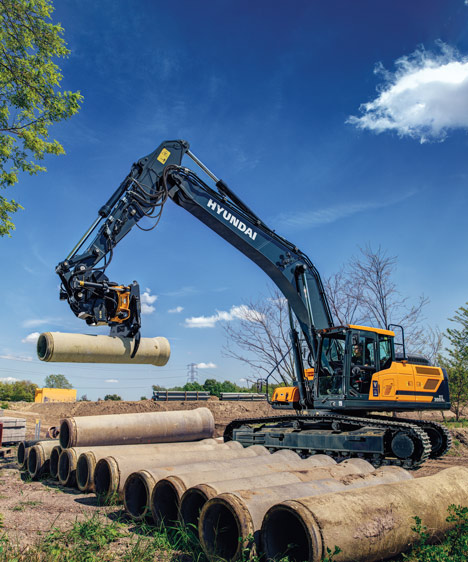

The HX330A L using the grabber attachment to pick up a large pipe

FAQs about the HX330A L crawler excavator

Does the HX330A L comply with the European stage V emission levels?

Yes. The HX330A L complies with the European Stage V emission levels

Does the HX330A L integrate with Hi Mate?

Yes. Hyundai’s innovative Hi MATE telematics system enables full monitoring of machine activity and performance.

What is the fuel filter service interval on the HX330A L?

1,000 hours

What is the tailswing radius of the HX330A L?


What is the bucket capacity of the HX330A L?

1.44 m³ - 2.10 m³
