HX35A Z Compact Excavator unloading material

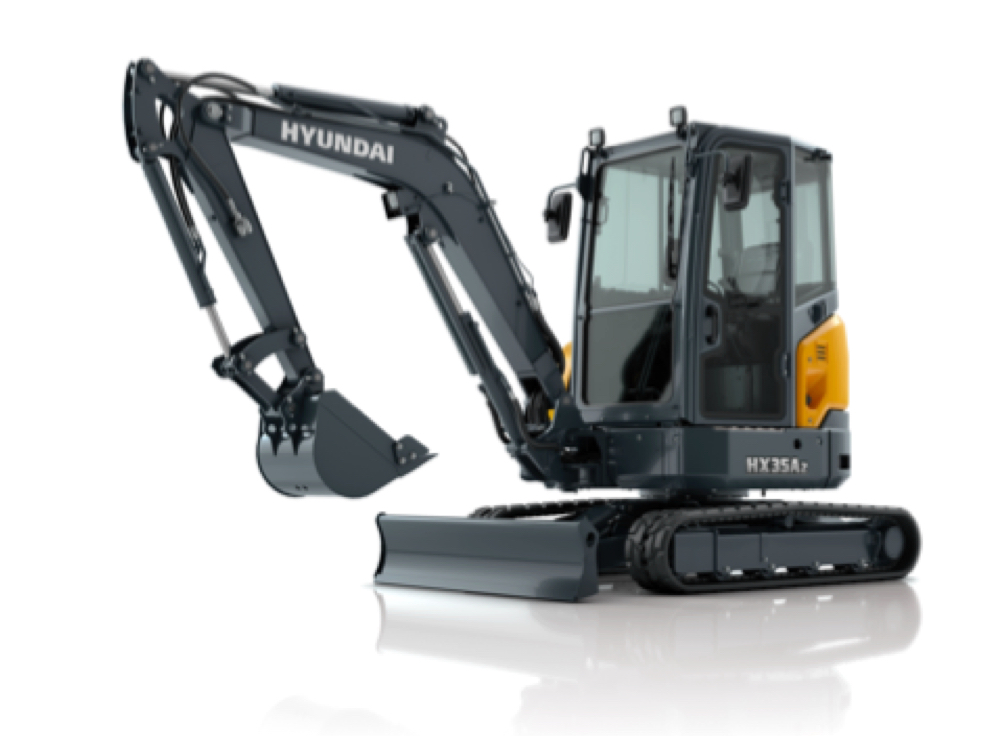

HX35A Z Compact Excavator

HX35A Z Compact Excavator

The new HX35A Z features an all-new design, with breaking standards in performance, comfort, control, safety and serviceability. This 3.5-tonne machine has everything you need for working productively in tough, challenging environments.

3880 kg

Kubota D1703

18.5 kW

0.09 cubic meter

Technical details

Product Overview

The HX35A Z is a zero tailswing excavator with no rear overhang, making it very manoeuvrable, efficient and safe. As with all our new compact machines, it benefits from a brand-new Stage V engine delivering 18.5 kW (25.2hp) gross power. The HX35A Z is available in a cabin or canopy design with a tilting cabin and 4-way dozer blade as option for greater productivity and serviceability.

Reasons to choose the HX35A Z

Breaking standards in comfort & controllability

The HX35A Z cabin and canopy machines have been designed with operator comfort and convenience in mind, with spacious interiors and reduced sound levels.

  • A new 5-inch full colour LCD display monitor allows easy control of excavator settings and critical functions.
  • IP68 waterproof LCD monitor is especially important when working in a canopy model.
  • Adjustable hydraulic attachment flow using the digital display improves speed and ease-of-use.
  • Proportional fingertip control ensures easy and precise operation of hydraulic attachments.
  • Auto-Shift feature provides seamless transitioning between high and low travel speeds.

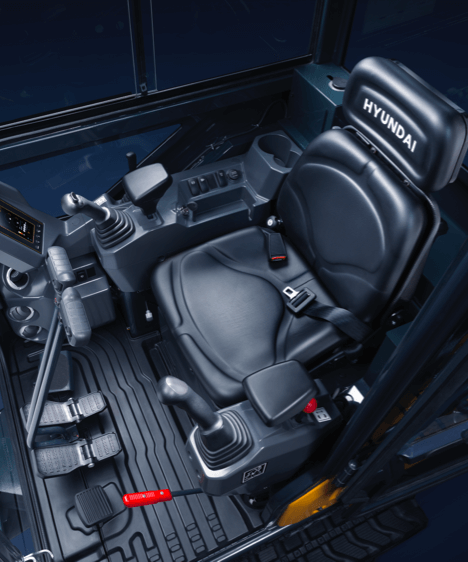

HX35A Z Hyundai compact excavator operator cabin

Breaking standards in safety

The HX35A Z compact excavator has the highest levels of safety standards, with state-of-the-art features that protect both operator and machine alike.

  • ROPS (Roll-Over Protective Structure), TOPS (Tip-Over Protective Structure) and optional FOG (Falling Object Guard) deliver ultimate safety while working.
  • The anti-theft system includes password-protected ignition and an optional GPS machine tracker.
  • A hydraulic accumulator enables you to lower the boom and arm to leave your equipment in a safe place on site.
  • An on-screen overload warning alarm sounds when too much weight is lifted.
  • • Boom, arm and dozer blade safety valves automatically activate in the event of hydraulic hose damage, to prevent any sudden drops.

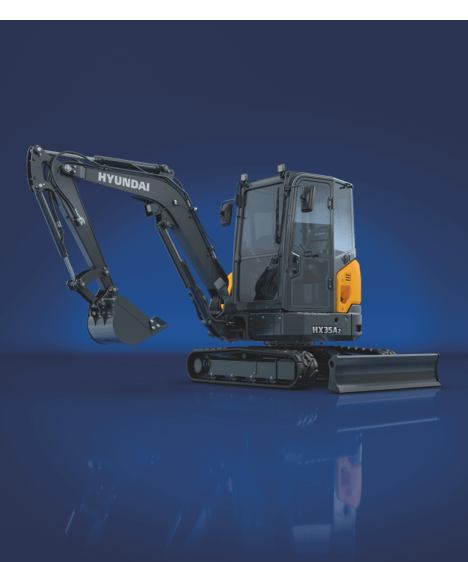

HX35A Z compact excavator, stationary on a blue background

Breaking standards in productivity

A new efficient Stage V engine delivers more power, while meeting EU emission regulations. No exhaust after-treatment helps reduce maintenance and downtime.

  • 2-way auxiliary hydraulic piping as standard allows the use of hammer or shear attachments.
  • A standard floating function and an optional 4-way dozer blade for enhanced versatility and efficiency.
  • Dipper arm length options are available to match the application.
  • An optional factory-fitted hydraulic line can operate any hydraulic coupler, allowing quick attachment changes from inside the cabin.

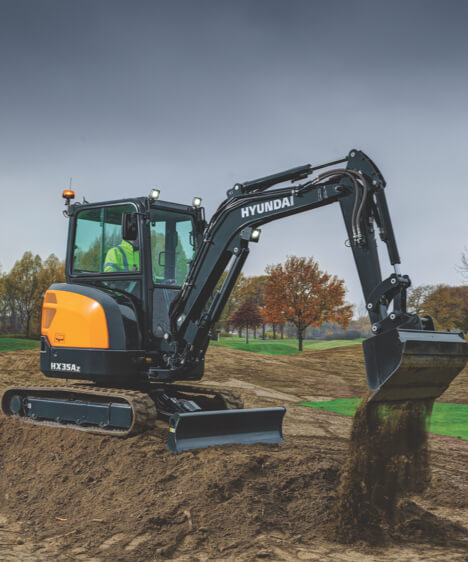

HX35A Z Compact Excavator unloading material

Breaking standards in serviceability

An easy access design for convenient maintenance reduces downtime, while long service intervals help to reduce costs.

  • A tilting cabin design makes regular maintenance and servicing easier.
  • New boom, arm and bucket cylinder guards provide increased protection, reducing downtime and costly repairs.
  • A dozer blade cylinder maintenance interface enables the easy replacement of hoses.
  • Optional Hi-MATE remote management system helps provide the highest level of service and product support available.
HX35A Z excavator with engine hood open

FAQs about the HX35A Z compact excavator

Does the HX35A Z comply with the European stage V emission levels?

Yes. Its high performance engine delivers better productivity and fuel efficiency while meeting EU Stage V emissions regulations

Does the HX35A Z integrate with Hi Mate?

Yes. Hyundai’s innovative Hi MATE telematics system enables full monitoring of machine activity and performance.

What is the operating weight of the HX35A Z?

The operating weight is 3.5 tonnes.

Is the HX35A Z zero tail swing?

Yes. The HX35A Z is a true zero tailswing excavator which eliminates the rear overhang, allowing it to rotate freely within its own footprint.
