Wheel Loaders

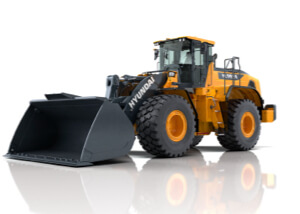

HL975A CVT Wheel Loader

The HL975A CVT Wheel Loader, part of Hyundai’s A-Series, is powered by a robust Stage V-certified Cummins X12 engine, combined with a ZF Continuously Variable Transmission (CVT).

This delivers the power you need for heavy-duty work in extreme conditions, such as handling granular materials like sand and gravel in mining and quarrying applications.

26500 kg

Cummins X12

250 kW

4.10 m³ - 4.80 m³

Maximum productivity

A powerful Stage V engine, combined with a ZF Continuously Variable Transmission (CVT) and a range of new operating modes, deliver greater fuel efficiency and productivity.

  • The Cummins X12 engine meets Stage V emissions requirements and is designed for maximum productivity and fuel savings.
  • ZF CVT-transmission offers optimised power matching, to continually keep the engine in a low rpm range while offering smooth, seamless acceleration.
  • Traction Mode is an adjustable traction control system that contributes to highly efficient job cycles while also minimising tyre slip and wear.
  • Creep Mode enables the machine to stay in slow driving motion when FWD/ REV gear is selected, for when precise travelling is needed.
  • Dynamic Mode allows the operator to use full engine power up to 1800 rpm, for even faster job cycles.
Hyundai HL975A CVT wheel loader

Efficient performance

Precise operating systems help you to get the most out of this mighty machine, including optimised power matching for the ultimate balance of torque and RPM.

  • Automatic engine shutdown feature works automatically when the machine is at rest to cut fuel consumption and prevent unnecessary emissions.
  • Eco Report feature makes it easy for operators to develop efficient working habits by displaying real-time information about machine performance.
  • A highly accurate automatic/manual cumulative weighing system helps you to manage production more efficiently in any environment.
  • A hydraulic locking differential, prevents tyre slip for more secure operation as well as better productivity and fuel economy.
  • The inching brake pedal applies the right amount of braking power, while optimising the engine speed in various operating conditions and reducing wear on the brake discs.
HL975A CVT moving aggregate

Durable and reliable

The axles, driveshaft and power split CVT system have been optimised for endurance and tested rigorously on a range of work sites.

  • Premium quality axles with enhanced load capacity and sintered brake discs offer better reliability and durability.
  • High-grade hoses with outstanding resistance to heat and pressure, provide maximum durability, even in rough working conditions.
  • A separate axle oil cooling system is available as an option, to prevent overheating during high-load work or tasks requiring frequent braking.
  • A thermostat for transmission oil cooling helps to warm up the fluid quickly and always keeps it at the optimal working temperature, protecting components and increasing efficiency.
HL975A CVT loading a truck

Greater comfort

The HL975A CVT cabin was designed to be a spacious and productive, stress-free working environment to suit any operator.

  • State-of-the-art noise and vibration reduction technology delivers one of the lowest sound levels in this machine category.
  • A large, comfortable air suspension seat with heating as standard. The seat and armrest are fully adjustable for added comfort.
  • A ride control system provides more stable and comfortable operation and minimises spillage.
  • The soft end stop function reduces the hydraulic speed of the cylinder as it reaches the end of its stroke to lessen the shock load, for increased operating comfort and better material retention.
  • The instrument panel is optimised to provide quick, easy access to machine status information as you work and features a seven-inch touchscreen monitor for excellent legibility.
  • All the indicators displaying machine status are centralised in one cluster to enable easy, efficient control.
HL series cabin interior
